Report Details - Query Execution Time.

You can find the details of report execution and SQL in the SQL view. Starting from version 9.2.1 you can see the below information.

Total Duration in Query Engine -  This gives you the total time the system took in the data query phase. Its is a sum of all the below  four.

SQL Generation -  The first step is to generate an SQL that needs to be run against the WH. This show the time taken by the engine to generate the SQL.

SQL Execution -  This is the time the SQL query took to run against the WH.

Total Data Fetch Duration -  Once the SQL is run, the data needs to be send back to the Iserver. This show the time it takes for the data to reach Iserver from the WH. If you see huge delay here, check your network

Other Processing Duration in Query Engine -  The results that come from the WH needs to be loaded into the Iserver memory, and in a format that Analytical engine can process if needed. This also includes the time needed for Analytical Engine calculations.

Wednesday, May 22, 2013

Dynamic Secury Filter


When I say dynamically apply the security filter, I am not talking about having multiple securty filters and dynamically choosing the filter on user login.  Lets look at this example. I have ten region, and each region has one manager. I want to allow each manager to view the data for his region. Only his region.

You can either make use of database level security feature, by mapping user connections. If data for all the regions are in the same table, you can still apply row level security. How do we apply this security filter from MSTR ?

You can create 10 different security filters, and add it to each region manager. In case if you are going to have new manager for these region, you can create 10 user group and apply security filter to these user groups. This is a failry easy example. Now my region grew and I have now 100 regions defined. How we apply the security filter ? Create 100 different security filters and groups. God, I am going home..

Its not practical to handle this situation like this.  You can make use of system prompt, [User Login] and database tables, to make this work easy. You will need to create a table. You need to be careful with the columns. Since in this case you are going to create a filter on Region for each region manager, you need to create a table with Columns for Region attribute ID and a new attribute for User (USER_ID, USER_DESC).

If your requirement is to create a filter based on country, in the new table should contain the  ID column for Country attribute and user attribute.  If your region id is mapping to REGION_ID, you creare the column name as REGION_ID. This way you do not want yo remap the ID form of Region attribute to the column in the new table.

We want this table to me joined in the SQL and for a correct sql join tree, it is important to define the relationship between User and Region. You create the attribute on wchich you want to filter on as a child of user. So in this case the relationship between user and region is one to many children. One user can have one or more region.

Now you can create an security filter as User@DESC = ?[User Login] . Note that you have to filter user attribute on DESC and match exactly to a custom value as "?[User Login]" . You might not be able to drag drop the system prompt. Dont worry about it.

Assign this security filter on the user groups. Now update the table that you created in the database with values for Region manager, based on his user login and the region to which he has access.  Compared to creating n number of security filters and assigning it to user, updating the DB is easy.

Example security table.

USER_ID USER_DESC REGION_ID

1 sam 1
2 nam 2
3 Administrator 3
1 sam 3
3 Administrator 1

Look at the SQL when you execute an report. You will see the security filter applied on the WHERE clause.

truncated..................
where a11.[CALL_CTR_ID] = a12.[CALL_CTR_ID] and

a12.[REGION_ID] = a13.[REGION_ID] and --> selects only the region available in the security table
a12.[REGION_ID] = a14.[REGION_ID]
and a13.[USER_DESC] = 'sam--> Gets the value from the system prompt,

Lets add some complexity to this.

I want each Regional manager to see the data for his region and also the total for the Country to which his region belongs.

You want the metric at the country level, how do you do this ? Using a level metric we can calculate the metric at other level that that of Report Level. In this case it is Country.  How to we include all the regions in this country ?  By making the filtering as absolute.  So you create a metric with level country and filtering to absolute and grouping as standard.  This level metric will give you the total for the county in which the region belongs

If you look at the SQL you will see the below statement selecting the country for which the logged in user's region belongs to.

select distinct s22.[COUNTRY_ID] AS COUNTRY_ID

from [LU_REGION] s22,
[SECURITY] s23
where s22.[REGION_ID] = s23.[REGION_ID]
and s23.[USER_DESC] = 'sam'

Monday, May 20, 2013

Modifying column names


Sometimes in your projects you might need to accomodate a change in table column names. The process earlier was to manually unlink the dependent attributes, and then update the table structure using the WH catalog. Thanks to Architect tool, the process is much simpler now. I have three tables and in one of the table, the ID form for Attribute A1 is pointing to column A11. This column is changed to columan name A1.
The below is the screen shot of the changes that needs to be done using Architect.

Open the Architect from Schema menu, and go to table view.
Right click on the table and show data. You will see that the column name has changed.



Right click on the table and update structure. You will see the new table as below. A1 is the new column name.

Now you need to modify the definition of A1 attribute to include this change.


In my project attribute A1 has multiple ID forms. This is why you are seeing two definitions. . I want to remove A11 since column name A11 does not exist anymore and i dont reference it in any other tables.



You cannot just choose the defnition for A1 column without deleting / removing A11 definition.






Once you are done, go to hierarchy view. You will see that the relationship is broken


Click on A2 and frag a line pointint to A1. The Architect will create the relationship between these two attributes.
Save and update scema and you are done :)

Friday, May 17, 2013

MicroStrategy SQL Generation


How does MicroStrategy generates an SQL?

You must first understand that no BI systems are build on artificial intelligence, and that they will start auto learning. These systems works on a predefined set of rules. Objects are built on that, and sql are generated in a predefined fashion.

MicroStrategy identifies tables as base table and lookup table. Base tables support the calculation and aggregation of metrics, and the lookup tables are for resolving the attribute forms.

When you run a report, MSTR looks for the best base table that can support the calculation of the metric in the report. It also checks whether the dimensionality attributes for the report are included in the base table.  In most cases you are not likely to keep all the dimensionality in the base table. In this case engine will still choose the base table provided, the base table has the child attribute of the report dimensionality.  If there is no child attribute of the dimensionality included in the report, engine will still support the base table if there is a fact extension defined.  Sometimes, it so happens that in your data warehouse, you have multiple tables that can support the attributes and metric. In that, MSTR looks for the logical table size, and it chooses the table with the smallest logical table size.

Let's look at how the lookup tables are joined the SQL. You will see that in most cases, only the ID form is included in the intermediate pass. If you have included parent and child, only the child ID form will be used in the SQL. MSTR will not join an extra table for the sake of resolving the extra forms, it includes the extra forms only if they are present in the tables included in the SQL pass.  All the other forms that are not yet resolved will be obtained from the final pass by using the lookup tables.

Lets look at the below example. I have three tables in my WH.

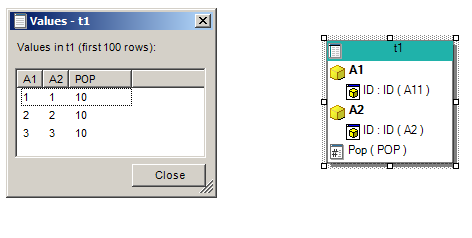

Table T1

Table T2

Table T3




The relationship between the attributes is shown below.
I am trying to generate a result at level B2.


The SQL that I need to use for generating this out is
#mysql> SELECT T2.B2, COUNT(T1.POP), SUM(T3.POP2) FROM T1, T2, T3 WHERE T3.A1=T1.
A1 AND T1.A2=T2.A2 GROUP BY T2.B2;

Will you be able to generate the same results in MSTR ? By the rule, it needs to have the dimensionality included in the base table, in this case it is B2, and it does not exist in the Fact table T3,  Not it checks whether any child of B2 is available in the Fact table T3, and it does not find anything. Hence this will result in a cross join between the Fact Table T3 and  table T2 (which has the required dimensionality).

The SQL generated by MSTR will have a cross join.

select pa11.B2 B2,
pa11.WJXBFS1 WJXBFS1,
pa12.WJXBFS1 WJXBFS2
from (select a12.B2 B2,
        count(a11.POP) WJXBFS1
        from t1 a11
        join t2 a12
        on (a11.A2 = a12.A2)
        group by a12.B2
) pa11
join (select a12.B2 B2,
        sum(a11.POP2) WJXBFS1
        from t3 a11
        cross join t2 a12
        group by a12.B2
) pa12
on (pa11.B2 = pa12.B2)

The report data is abviously wrong in this case due to the cross join.






What can you do to fix this report ?

We are talking about fixing this report, so that we get correct results. So I will not look at adding the child attributes into the report, so that the dimensionality gets changed. What changes do we need to make to the base table, so that the calculation of this report is supported.  The base table in this case is T3. and it has an attribute A1. If you want to do the calculation at level B1, you need to make A1 as a child of B1. So you will need to either modity T2 and add A1, or create a seperate relationship table for A1,B2.

What other options do you see..

The relation ship was designed like this.



Correct the relationship as below.




Thursday, May 16, 2013

Load testing Microstrategy Web Reports and Documents

Load testing web

In almost every project, the architects will need to publish the repornse time of ther BI systems. To get the response time from the statistics is easy. However we need a system that can simulate a real time scenario, so that the actual capacity or response time of the BI systems can be estimated. A system that performs quiet well for a single user coulf fail, when 100 such users access the system at the same time. In this article we will see how to quickly set up a performance test for your web reports and dashboards. We will use Jmeter an open source graphical testing tool

Jmeter setup:-

I have shows below the minimal settings that you will need to stress test your system. You can follow the documentation for advanced settings.

  • Provide a test plan name.



  • Add Thread Group.


  • Add HTTP Sampler. This is where you define the hostname, port and the url to test.




Once you provide the hostname, proptocol, and port, you need to add the path for report / document execution. Add the login credentials to the URL, eg:- &uid=username&pwd=password

This is needed for automatic login and execute the report. Remember to set your login method to standard during the time of test.

Now to view the results, use any of the listener outputs. like summarised view, tree view. I am using view results in table. You are now set to do the test. Lets look at the output.




The average response time is about 597 ms . Enable statistics from your web admin page and see the results.


Is shows 500 ms. So with this test data, you can say that the reports average response time is about 600 sec, with a deviation of about 140 ms for 10 concurrent access.






MicroStrategy - Disastar Recovery


MicroStrategy - Disastar Recovery

MicroStrategy provides clustering mechanism for HA. But that does not safegaurd your BI system. And it always need some additional care to make sure your BI system is available or at least you can recover the system to a stable state in a short period of time.  This is quiet a generic statement, the "short time" depends on your business decision, its can be half an hour to days.. How critical is it to have this system back online, is also another business question you should consider beforing planning an disaster recovery.  You will however need to adopt additional process to safe gaurd your system.

How do we get started :-

You will fist need to identify the failure points. And then take appropriate measures to handle those situations. This is the findemental of a disastar recovery plan.

Possible failure points:-

  • Intelligence Server
  • Web Server
  • Network
  • Database (WH)
  • Database (MetaData)
You can generally classify service failure into two 1. System Failure, 2. Software failure.  The procedures to follow for these two kinds of failure are different. In case of a hardware failure, you are will need to find a new hardware and restore your system, where as in case of software failure you will need to start troubleshooting and initiate recovery process.

Hardware Failure :-

If your hard disk is good, you can find an alternate server and swap the hard disk. However if the hard disk has failed, then you will need to rebuild the system. Rebuilding a system is a major process and almost all companies have some standard way of doing it. Some might use PXE boot and other might even have a even more simple process like doing an update on a web page.

The fastest way to restore your Intelligence Server is to  archive the Microstrategy folders, Cache folder, and your Inbox (history list), tnsnames.ora, third party library (if you use)  and then untar it on the new system. That will need you keep a latest copy of the files in an archive format. You can use tar command in linux for doing that.

The same goes principle goes for your web server, if you are using apache tomcat.  Just keep a archive of the apache install directory. Untar it on the new system and you are ready to go. Provided you have dependecies like java installed on the new system. The other dependencies like java will be installed as part of OS reimage. Hence you dont need to take backup of these binaries in your archive.

The process to restore the system is simple and easy, Ofcourse if you have planned for it.

Restore Process :-

  • IServer
    • backup the following directories using tar
      • MSTR installation directory
      • Cache and Inbox
      • tnsnames.ora referenced in your odbc.ini file
  • Web Server (apache tomcat)
    • Backup the entire install directory  excluding the workdir and logs
  • Reimage a new hardware with the same OS image used for IS and Web server
  • Copy the archive files to the new server and untar it.
  • If you are just replacing the broken hardware with the newer one, this is all you will need to do.
  • In case if you moving to a new system, and there is change in hostname, you will need to reconfigure the web and other changes might be needed.

Software Failure:-

Here you have an option to migrate the services to another server. This concept is called cluster. MSTR supports clustering of upto four Intelligence Server.  You can configure the cluster to work as load balancing or for high availability. MSTR will take care of migrating the project to another server in case one node fails.

Generally production environment is built like this. Iservers run on linux, and web servers run on apache tomcat on a linux system. You can either cluster two tomcat server. Or run them as independent server and add a vip and load balance using the load balancer. The load balancer will detect if there is a server failure and reroute the request to the other node.

Colo Failure:-

How do we safegaurd from a colo failure. It's not extremely rare to see a colo outage, imagine if the backbone and backup backbone for outgoing connection fails, your colo is unaccessible. The way to safegaurd from such a failure is totally different from the above two scenarios. You need to have greater budget, since it not only involves building a replica of the BI systems, but also your data warehouse. Remember all your data is coming from the WH and if the WH is residing in the colo which is considered as failed.

Build a similar system in the backup location and let it be online. If your BI URL is x.company.com, you can name your backup BI as xbackup.company.com. Make sure your backup BI is working fine. Now the most important factor is , dont let users know about the backup URL. Secondly apply all the productin changes to backup systesm, like hotfix, plugin, configuration changes etc. When the primary fails, just make a DNS change and point your primary URL to the backup. Users might see a small lag due to colo change, but thats usually negligable. You can create your own system to monitor the primary url and do this failover automatic. You can include your business rules on when to do a failover and how many reattempts to make before you do a  failover.

Saturday, May 4, 2013

Sorting on an alphanumeric metric column

How does microstrategy sort data ?

This looks like a very easy question, however it is important to understand how sorting of data happens in the report.  With Version 9.x MSTR has changed the way they sort data. Earlier the sorting was platform dependent. Intelligence Server will do the sorting for a 4-tier environment (web) and the desktop analytical engine will do the sorting for 3-tier architecture. The sorting is dependent on the platform (OS) specific localization setting to determine the sorting rules to follow. However rules for the same localization on different platforms are different and this often affected the sort order for MicroStrategy Reports. To mitigate this problem, starting from 9.x MSTR uses International Components for Unicode libraries for sorting algorithm. This library is standard across all platforms.

Alphanumeric sorting

This is based on "natural sorting" algorithm. You need not be surprised when you see A100 coming before A20.  Micorstrategy identifies the type of data returned from the warehouse, and and applies similar sorting logic. There might be lot of instanced when your metric consists of both Alphabets and numbers. How do you sort it ? And then you sort on such metric, the results will look like below.

Why is 10 coming ahead of 2. This is not users want to  see. Users dont care what damn algorithm you use for sorting. All they want  to see is data sorted in a humanly sensible way, and that is numer 10 coming after number 5. If it is a programming language you could write your own code. Will you be able to do a code change for BI internals ? Or do you have the time to request for a new algorithm and wait for it? Usually you get few hours to respond for a client request like this?

There are multiple ways you can resolve this problem. You could alter the table structure and insert a new numeric column, and sort on that. It is nearly impossible to apply this solution in a productin environment to solve a problem like this.
The easy way is to create a new fact, with your database specific function to convert the column into integer. I am using microsoft access DB and below is the new fact expression that I created.

ApplySimple("cint (#0)", [TEST_SORT])

This database specific function would take care of converting the column values into numeric type and return only numberic data.  Sorting on the numeric data type is what the user expected to see. You can create a new metric based on this fact and sort using that. You will now see the report results sorted in a way the user wanted.

You can apply formatting and adjust the column width if you do not want to display the new metric in the report. Will look like something below.



Do you know of any solution where you can add the new metric in the objects list and sort based on that. I am using 9.2.1m and when I applied advanced sort based on this new metric and removed it from the grid, the sorting was reset. It there is a way you can sort on objects not in the grid, that could help .

Friday, May 3, 2013

Web or Intelligence Server - Identify where to start applying the optimization


Perfronamce Optimization

Invariably this is one area where every architect and developer will spend a lot of time identifying the bottleneck in the system or the whcih areas to apply optimization.  How do they do that ? We do not  know the internals of MSTR, and the only approach that we can take is to follow the suggestions provided by MSTR. And there are many. Before you start following the suggestions you must know which of these sugegstions to apply? Else you will end up in lot of trials than what is necessary and many times, tasks that can be completed quickly, could take longer time.

So how do i quickly identify where to apply the optimization ?

  1. Is it my web server taking longer time to display the result?
  2. Is it my Intelligence Server taking longer time to process the result ?
  3. Is it my network causing the delay ?
these are the basic questions you could start asking and once you identify the source of delay, you can further use the suggestions from MicroStrategy.

Web Stats

MicroStrategy has an option in the Web Admin Page, called statistics. You can enable this and choose either screen / file / both. When you choose screen option, you will see some statistics on evey page displayed. Lets look at how to use these statistics.  For the purpose of the demo, I created a Dashboard with three reports. I have disabled report caching at project level, since I dont want the results to come from a cache while doing my testing.

On Executing the dashboard, you can see the below statistics displayed below the dashbaord content.

Total Web Server + IServer processing time : 3140 millisecondsWeb server processing time : 630 milliseconds (20%)
Transmission Time : 0 milliseconds
IServer processing Time : 2510 milliseconds (80%)
   IServer API time : 220 milliseconds (7%)
   IServer polling time : 2290 milliseconds (73%)
Number of Web API polling calls : 22
Number of Web API calls : 27
Bytes sent/received : 31504 63643
Start Time (millis) : 1367477655056
End Time (millis) : 1367477658196


Lets look at each of these lines.

  1. the first line, tells me that the total time it took for the display of the dashbaord is approximately 3 sec
  2. second line, shows the total time taken by web server, this is the renderind time web server takes to process the xml results from the IS  (630/3140) *100 = 20 %
  3. third line, is the transmission time, since IS and web are on the same machine, it is zero
  4. fourth line, shows the time taken by the Intelligence Server for processing of the results as well as the polling time. (2510/3140) * 100 = 80 %
  5. fifth line, shows the time to execute XML API calls and retrieve the data.
  6. sixth line , shows the amount of time the server spends polling the IS for data.
  7. seventh line, show the number of polling calls made, polling is done every 110 milliseconds.
  8. eight line, shows the number of API calls made by web, this included calls to IS and local calls to acccess cache, user rights etc
  9. ninth lines, shows the data send and received in bytes, it cal vary each time because of the number of calls made.
  10. tenth line, shows the start time
  11. elevent line show the end time.

So in this example, you can easily say that 80% of the time is spend in Intelligence Server.  So where should I start applying the optimization ? Web server ? but that hardly took 20 % of the time.   I need to look at how to optimize that 80%  time taken by I server.

The reports are not using any prompts, and hence I decided to enable caching for them. Lets look at the stats now.

Total Web Server + IServer processing time : 860 millisecondsWeb server processing time : 450 milliseconds (52%)
Transmission Time : 0 milliseconds
IServer processing Time : 410 milliseconds (48%)
   IServer API time : 110 milliseconds (13%)
   IServer polling time : 300 milliseconds (35%)
Number of Web API polling calls : 3
Number of Web API calls : 14
Bytes sent/received : 7646 71394
Start Time (millis) : 1367477719529
End Time (millis) : 1367477720389
See how the dashbaord is now displayed withing a second. From three seconds to one second, is my performance gain. And all of this is done quickly. Depending on your case, the time it takes to find a method for optimization might vary.  The critical factor is to identify where to apply the optimization and which areas needs optimization. Without knowing that you are going to take a longer route for an easy solution.

Wednesday, May 1, 2013

Logical Key - Part 1


Logical Key


Remember seeing a symbol like this ? Where did you see this ? I was conducting few interviews and I was surprised to see that many candidates did not know about it.

What is a logical key?

A logical key represents any column in a table for which you have defined an attribute and in case if there are multiple attributes from the same hierarchy, the key is shown only for the lowest level attribute.


Here I have two attributes; however Director is a child attribute of VP. Hence only the Director is having the logical key symbol.  Once i remove the relationship, both the attributes gets a logical key symbol.


 What is the signifiance of the logical key ?

MSTR join tables based on the attributes that have a key.  Lets look at this example. I have two tables, a Dimension table and tact table. I have two attributes - C1 and C2 and a fact - sales. The table i used in this example is shown below

C1_ID C1_DESC C2_ID C2_DESC
1 1A 1 2C
1 1A 2 2D
2 1B 3 2W
2 1B 4 2E
3 1C 5 2Q

C1_ID C2_ID SALES

1 1 10
1 2 15
2 3 20
2 4 25
3 5 10
I created two attributes C1 and C2 from the first table as lookup. I did not create a relationship between these two attributes.  The logical table looks like below.


Here both the attributes have a key symbol. Lets create a report with C1, C2 and sales metric. The SQL for this report is shown below.

select a11.[C1_ID] AS C1_ID,

         a12.[C1_DESC] AS C1_DESC,
         a11.[C2_ID] AS C2_ID,
         a12.[C2_DESC] AS C2_DESC,
         a11.[SALES] AS WJXBFS1
from ([FACT_TABLE_JOIN2] a11
        inner join [TABLE_JOIN1] a12
        on (a11.[C1_ID] = a12.[C1_ID] and
        a11.[C2_ID] = a12.[C2_ID]))

Why both C1 and C2 are appearing in the join clause ? This is because MSTR joins table based on the attributes that has a key. You can also say that MSTR joins tables based on the lowest possible child attribute. This lowest possible child attribute always have a key symbol.   Now, I defined C2 as a child of C1. Look at the change in key symbol and the SQL that is generated.

Only C2 is having this key symbol. This is because C2 is the child of C2.  The new SQL is shown below. Now the join happens only using the attribute C2.   select a11.[C1_ID] AS C1_ID,
          a12.[C1_DESC] AS C1_DESC,
          a11.[C2_ID] AS C2_ID,
          a12.[C2_DESC] AS C2_DESC,
          a11.[SALES] AS WJXBFS1
from ([FACT_TABLE_JOIN2] a11
          inner join [TABLE_JOIN1] a12
          on (a11.[C2_ID] = a12.[C2_ID]))





Logical Table Size

 Logical Table Size

What is a logical table size in MicroStrategy ?

This is a number that represents the level of aggregation for a given table.  Logical Table Size (LTS) is used my MSTR to identify the best table to choose when generating SQL. This is a number that will be used to identify which table is best fetching the data. For example, I have a report, with Category, Subcategory and profit metric.   I have the following two fact tables in the data warehouse

  1. FACT1 - category,subcategory,profit
  2. FACT2 - day,category,subcategory,profit.
Which of the tables is MSTR likely to choose for the join ?  MSTR uses an algoritham to find the best fact table for data retrival. It chooses the fact table with the lowest LTS.  Lets look at how mstr calculates the LTS, but before that we need to see the hierarchy. You need to use the system hierarchy, since this hierarchy build on true parent child relationship defined for the project.


Category
Sub Category
Item
Brand

How many levels are there in this hierarchy ? 4
MSTR will assign a weight based on the level of the attribute in the hierarchy.
Category  = 1/4 *10  = 2.5
Sub Category =  2/4 * 10 = 5
Item = 3/4 * 10 = 7.5
Brand = 4/4 * 10 = 10 (note that the lowest level attribute always have a weight of 10 )
Similary for a the date hierarchy, the values are calculated as below.

Year
Month
Week
Day

Year = 1/4* 10 = 2.5
Month = 2/4 *10 = 5
Week = 3/4 * 10 = 7.5
Day = 4/4 * 10 = 10

How to use the attribute weight and calculate logical table size ?

  1. FACT1 = weight for category + weight for sub category = 2.5 + 5 = 7.5 (rounded to 8)
  2. FACT2 = weight of day +  weight for category + weight for sub category = 10 + 2.5 + 5 = 17.5 (rounded to 18)
The fact table with smallest of these values is selected for querying the metric.  So in this case mstr will use FACT1 in the SQL join.
 You might come across hierarchies where a child has multiple parent. for example .

Category
Sub Category
Item

Product

Brand
 Here Brand is a child of both Item and Product. In this case the level of Brand is 4 (by using the level path from Item, here Item is at level 3) or 2 (by using the level path from Product, here product is at level 1)
MSTR will consider the highest of these numbers when consideing the level for Brand. ie 4.
